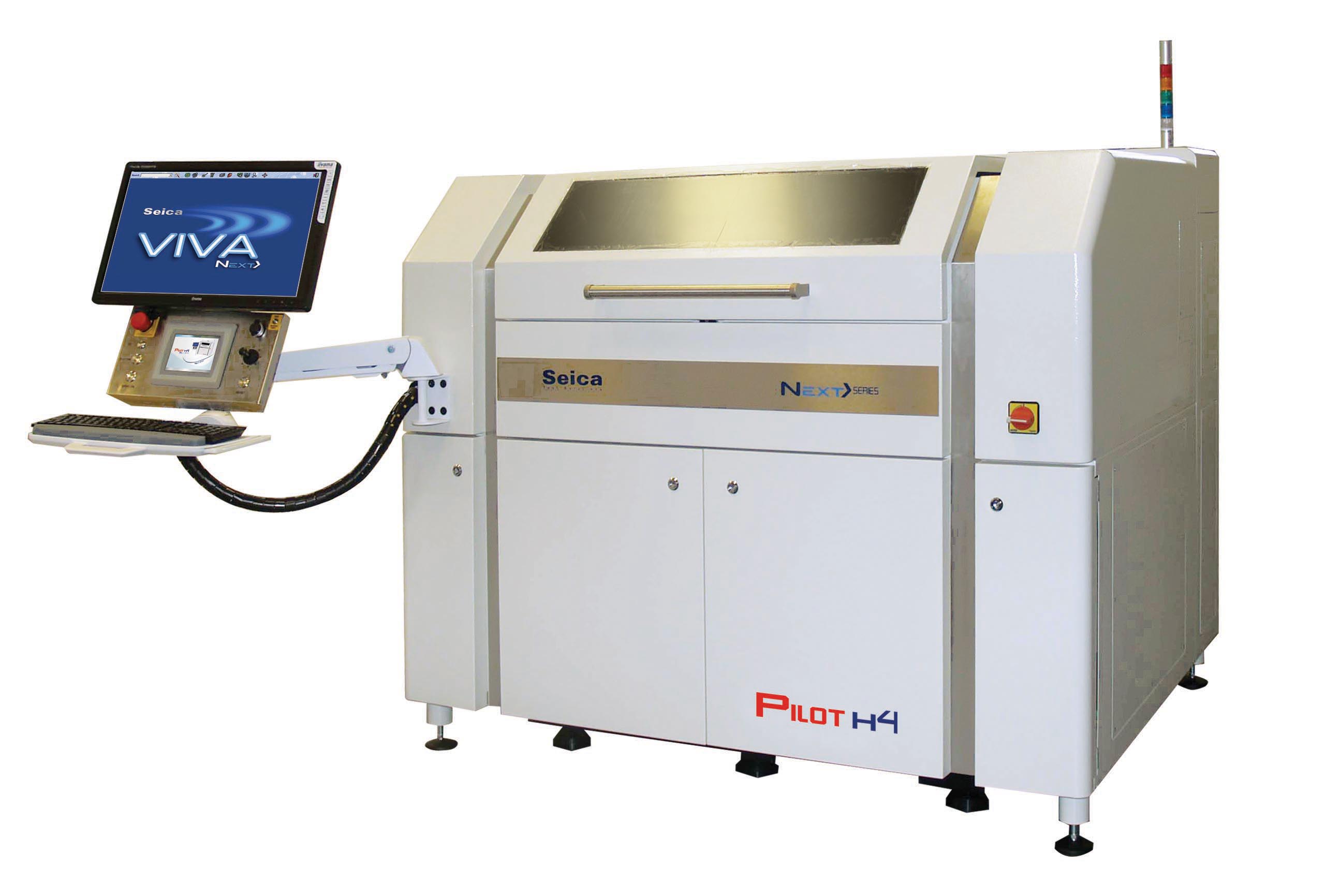

FLYING PROBE SYSTEM PILOT H4 NEXT> SERIES

The Pilot H4 Next>series represents the best solution for those looking for an economic flying probe system, is the ideal solution for low to medium volume production with the ability to expand at a future date. The test area can accommodate 16” x 20” boards with split test. The ATE rack can be expanded with additional analog channels, connectable to an optional external bed of nails test fixture (TPM).

Pilot H4 is suitable for:
Parametric and vectorless tests
Tests with powered UUT
Boards designed for test (access granted on one side only)
Low-volumes
Irregular boards (loading with pallets)

Features

– Testing unit with 4 flying probes on one side
– Manual loading
– Test vectorless on digital components, in-circuit tests
– Quick-test’ software for functional sequence implementation
– On-board programming, boundary scan test, visual tests
– Fixed channel management and power supply units in addition to flying probes
– Offline Programming and Repair stations
– Barcode and 2D-code reading management
– Automated statistics data collection
– Automated programming via CAD data import
