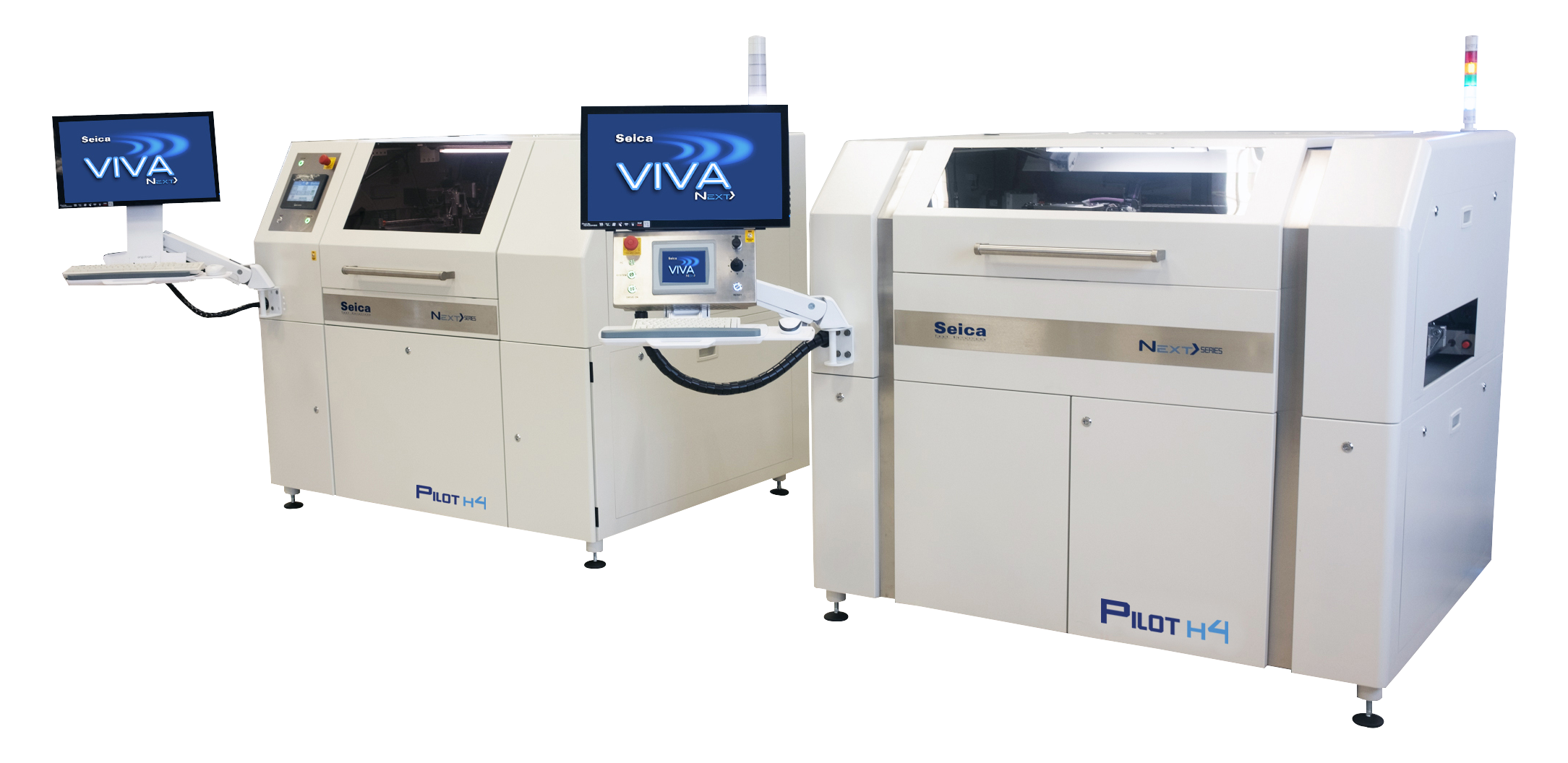

Pilot H4

The Pilot H4 series represents the best solution for those looking for an economic flying probe system, is the ideal solution for low to medium volume production with the ability to expand at a future date. The test area can accommodate 16” x 20” boards with split test. The ATE rack can be expanded with additional analog channels, connectable to an optional external bed of nails test fixture (TPM).

Pilot H4 is suitable for:
-Parametric and vectorless tests
-Tests with powered UUT
-Boards designed for test (access granted on one side only)
-Low-volumes
-Irregular boards (loading with pallets)

Features:
– Testing unit with 4 flying probes on one side
– Manual loading
– Test vectorless on digital components, in-circuit tests
– Quick-test’ software for functional sequence implementation
– On-board programming, boundary scan test, visual tests
– Fixed channel management and power supply units in addition to flying probes
– Offline Programming and Repair stations
– Barcode and 2D-code reading management
– Automated statistics data collection
– Automated programming via CAD data import

For more information, contact: sales@seica.com
