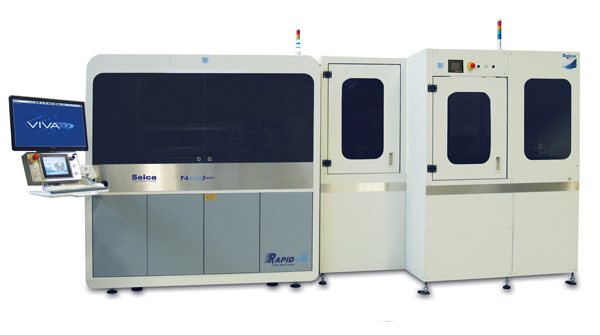

Rapid V8 – Bare Board Tester

The RAPID V8 test system combines the versatility and reduced footprint of a vertical system with the automation featuring the testers with horizontal architecture.
Through the Rapid V8 vertical system, unique in the galaxy of Flying probers for PCBs, Seica answers the most demanding requirements in terms of versatility and ease of use, combined with high-performance standards. The system is provided with 8 completely independent measurement probes allowing high test speed.
Four (4) probes on each side allow the most accurate measurements on both sides of the PCB. All types of testing methods are available, such as standard electrical PCB tests, Kelvin test, as well as testing of active and passive embedded components.

Features:

-Tests: inner layers, ceramic substrates, flexible circuit boards and printed circuit boards
-8  independent flying probes
-2 CCD cameras for top/bottom fiducial markers
-540mm x 610mm (21" x 24") test area
-High voltage, high impedance isolation tests
-Vacuum table as an option
-Precise probing on small pads and fine pitch
-Very high speed testing
-Repair station software embedded
-Soft touch capabilities
-In-circuit tests of embedded components
-Manuale and Automatic Board Loading
-Seica VIVA® Software
