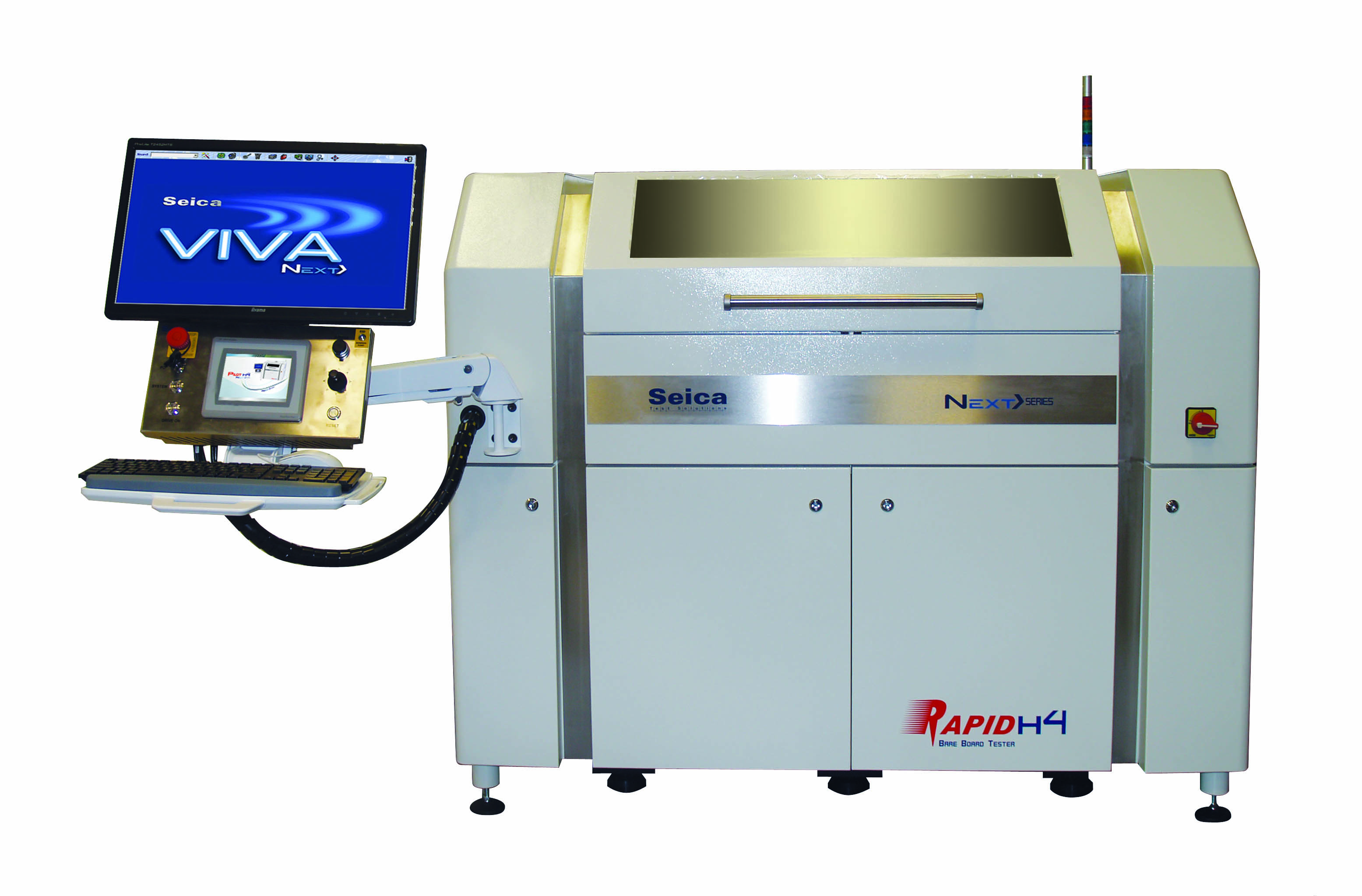

To meet the specific requirements of a market, where most of ceramics have test points on one side, Seica has introduced two new testers with horizontal architecture. TheRapid H4-H4A Next> seriestesters are equipped with 4 probes, all placed on the top side, combine the speed and accuracy featuring all the line testers with the streamlined creation of a program suitable to test ceramics also with “embedded” components.

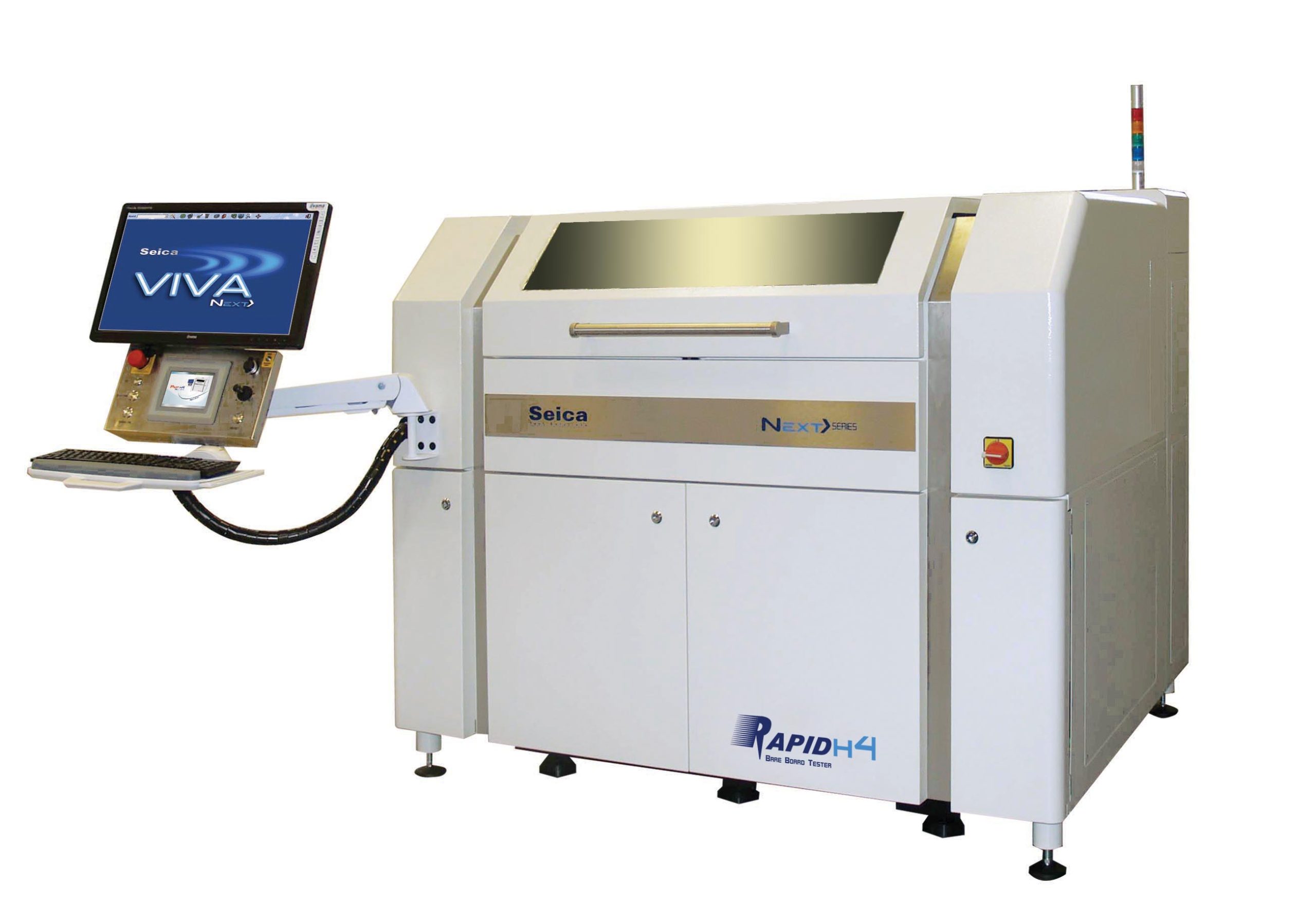

The Rapid H4 Next> series has a manual system to affix the PCB and is oriented to test prototypes and low-volume. With the pass-through conveyor, the Rapid H4 A Next> series is compliant with the SMEMA standard, may be included in a fully-automated production line, to support high-volume productions.
The Rapid H4-H4A Next> series can position all 4 probes on the same pad. Thanks to the third generation of linear guide technology the Rapid H4-H4A Next> series are able to achieve very high speed with the maximum accuracy and measurement repeatability. The Rapid H4-H4A Next> series are equipped with innovative new probe styles that can perform the same traditional tests such as 2wire and Kelvin test (4wire) for testing of the latest materials used in the PCB fabrication industry.
It tests: ceramic substrates
4 independent flying probes
1 1 HD CCD Camera at Probe for Optical Alignment and Vision Tests (Top )
540mm x 610mm (21″ x 24″) test area (Rapid 250)
500 x 396 mm (19.69 X 15.59”) test area (Rapid 230)
Manual – Rapid H4 Next> series
Manual and Automatic – Rapid H4A Next> series, Smema compliant, Conveyor Pass- through Left – Right
