Compact Slim Next> series – In-circuit and functional Tester

Only 300 mm width modular bed of nails tester

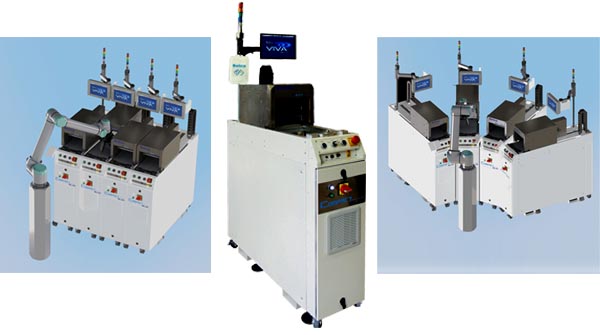

The Compact Slim Next> series is a very small (only 300 mm width) yet modular bed of nails tester especially suitable for deployment in as a series of equivalent systems, loaded either manually or via a COBOT solution. The system features a 180×300 mm test area with an automated receiver specifically conceived for robotized loading. There are 14 slots available for the ATE instrumentation, up to 6 user power supply units and an integrated control and management unit.

• Small size: 300 mm width, 762 mm height

• Scalable: suitable for serial installation of equivalent systems

• Can be used with Cobot, Robot or in Manual mode

• Sliding receiver for Robot loading

• 180 x 300 mm test area

• 14 slots available for ATE instruments

• Up to 640 channels

• Up to 6 User power supply units

• Integrated management and control unit
