Rapid V4-V8 Next> series – Bare Bord Tester
VERTICAL SYSTEMS

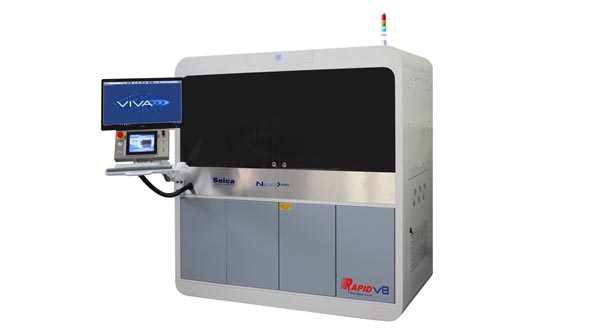

RAPID V8 Next> series (manual)
The Rapid V8 Next> Series is Bare Bord Tester particularly suitable where a short test set up time is needed to achieve the quickest time to market of the customer’s products. In addition, the system can address the most sophisticated prototypes, small and medium volumes (up to a single unit).
Compactness and rationality, combined with the simplicity of the management software, are the results of Seica research to develop a system for immediate operation.

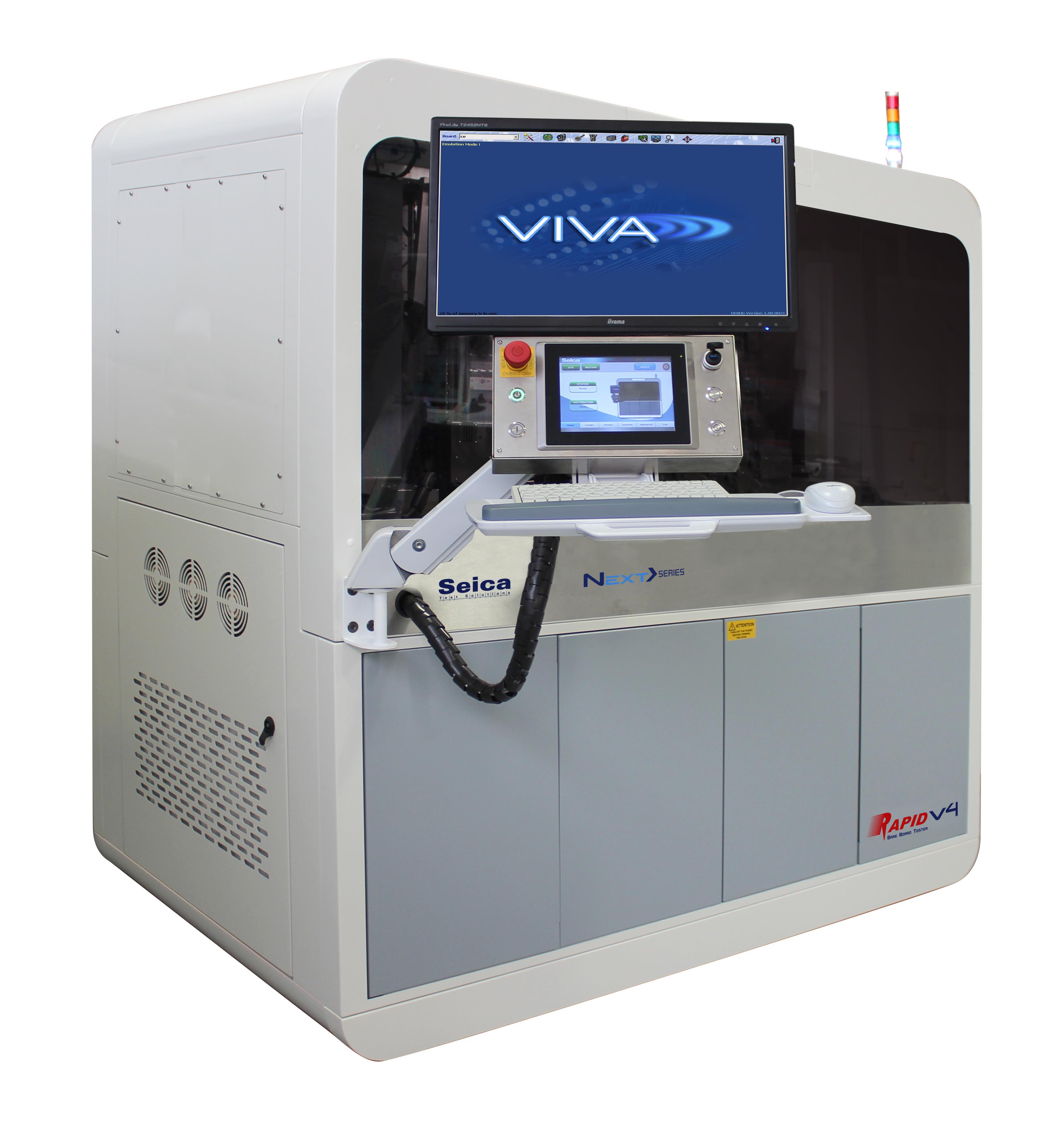

RAPID V4 Next> series (manual)
Those who want a compromise between versatility and cost-effectiveness of the vertical Flying Probers may find their ansie in the Rapid V4 Next> Series. Equipped with 4 fully independent probes (two on each side of the board) it is suitable to check the essential operational features of a PCB. Thanks to the VIP platform and the simplicity of VIVA software, the time needed for training is very low, and no specifically skilled personnel is required. The Rapid V4 Next> Series system makes the Flying Probe test suited for everyone: small manufacturers, prototype labs, service and repair labs, certification and quality assurance entities.
Features:
- It tests: inner layers, ceramic substrates, flexible circuit boards and printed circuit boards
- 4 (Rapid V4 Next> Series) /8 (Rapid V8 Next> Series) independent flying probes
- 2 CCD cameras for top/bottom fiducial markers
- 540mm x 610mm (21″ x 24″) test area
- High voltage, high impedance isolation tests
- Vacuum table as an option
- Precise probing on small pads and fine pitch
- Very high speed testing
- Repair station software embedded
- Soft touch capabilities
- In-circuit tests of embedded components
- Seica VIVA® Software
